Puppets,
from sketches to animation
|
|
|
Puppets,
from sketches to animation: Courtroom
1 - the Law
|
|
|
|
|
|
 |
 |
 |
 |
 |
|
 |
|

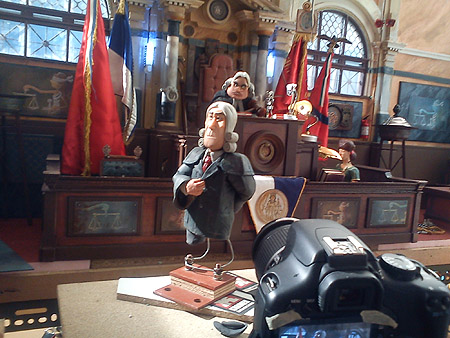

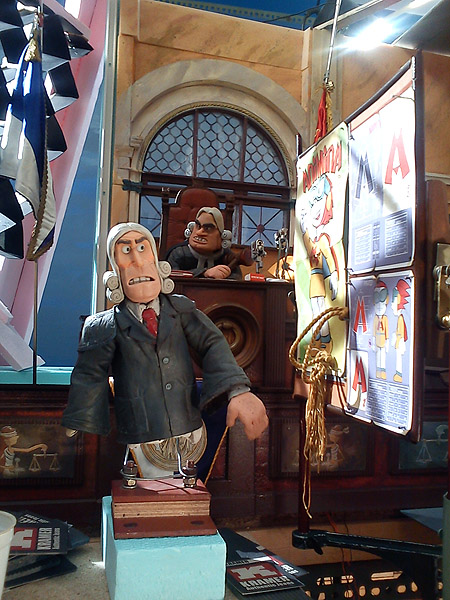

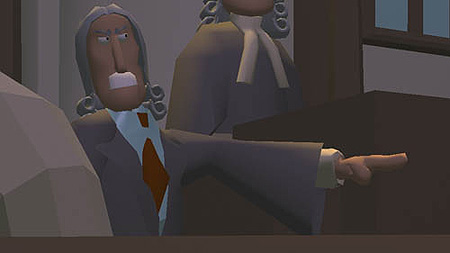

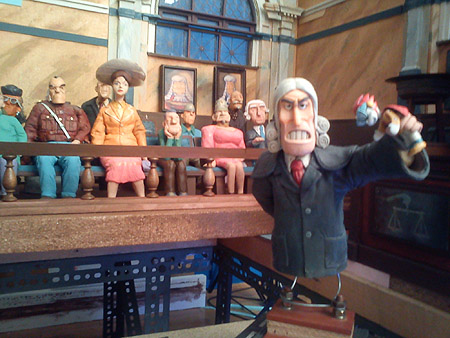

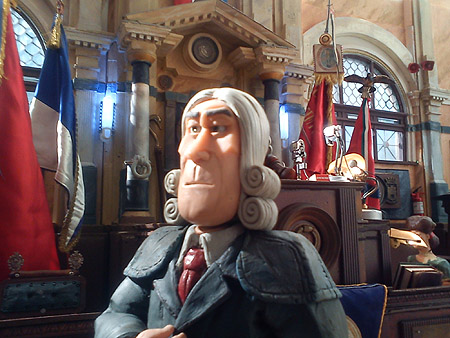

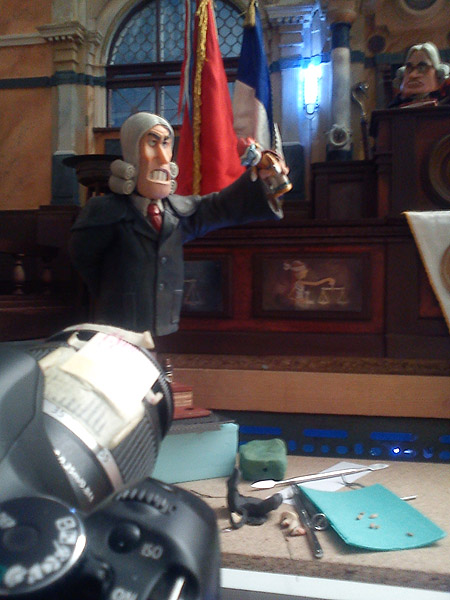

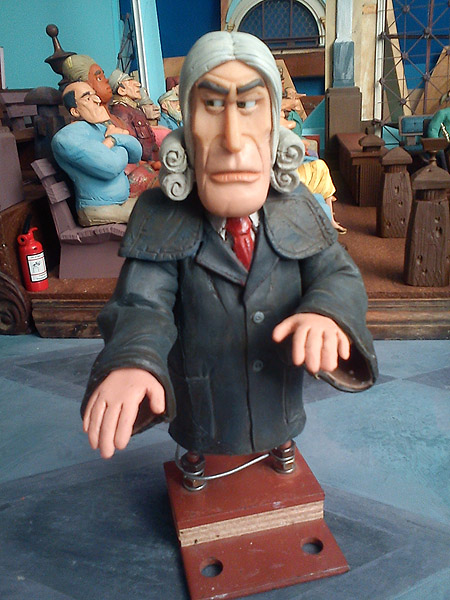

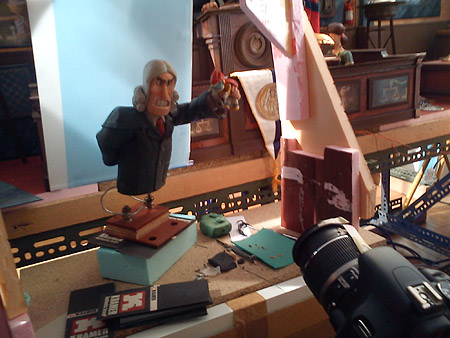

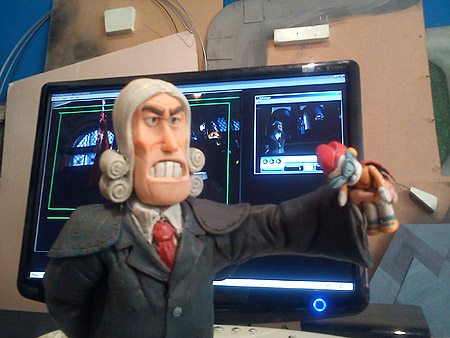

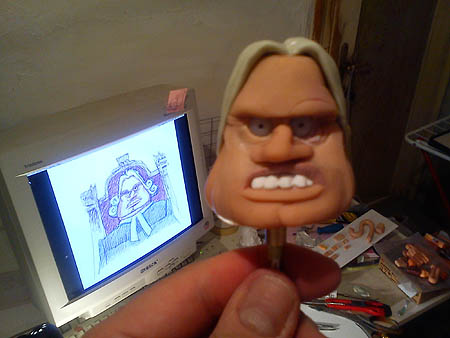

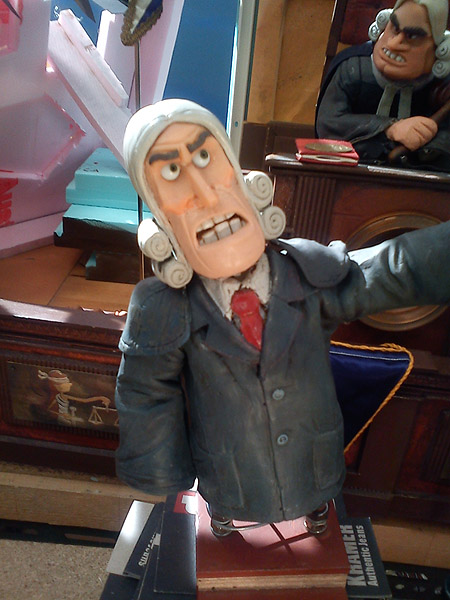

| There
really hasn't been any surprises with
this guy: he remained virtually unchanged

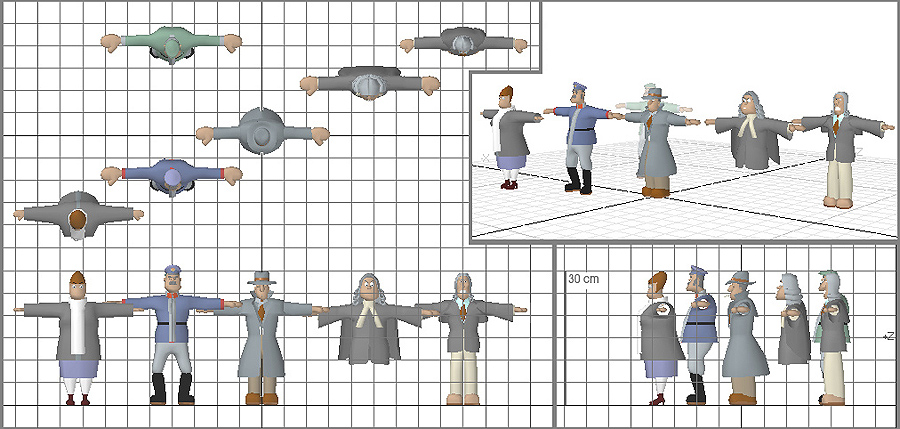

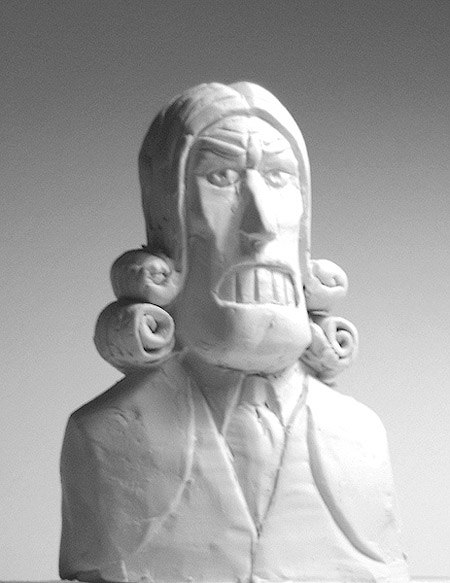

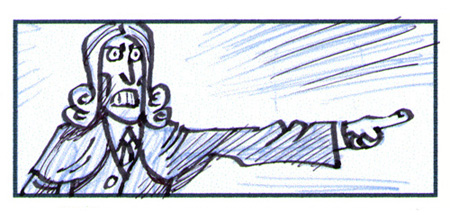

from the storyboard (this model above
dating from that time), to the end.
Kristijan gave him in animatic different
approaches - one bulldog-like temper,
and alternatelly, another one more gay-like.
Some of it got through, but I think
I got him as I wanted him - to be an
arrogant brittish prosecutor... |
 |
 |
|

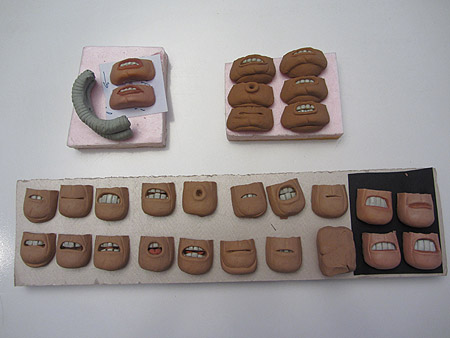

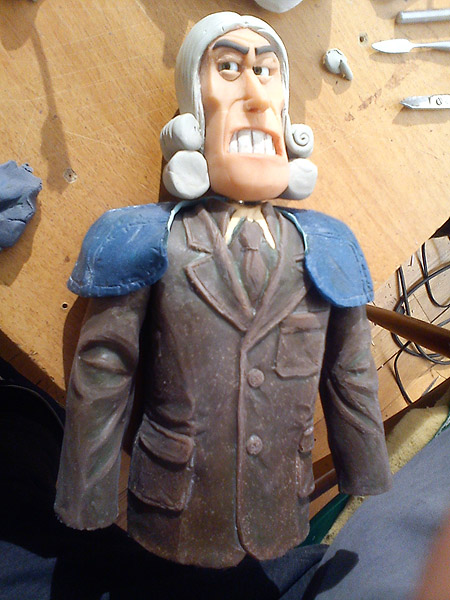

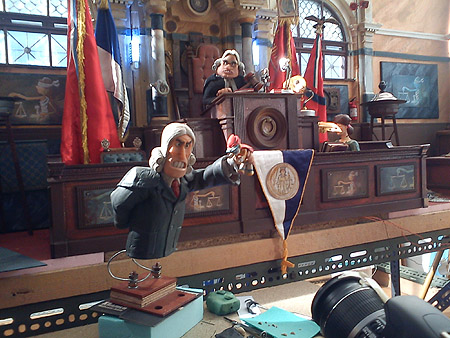

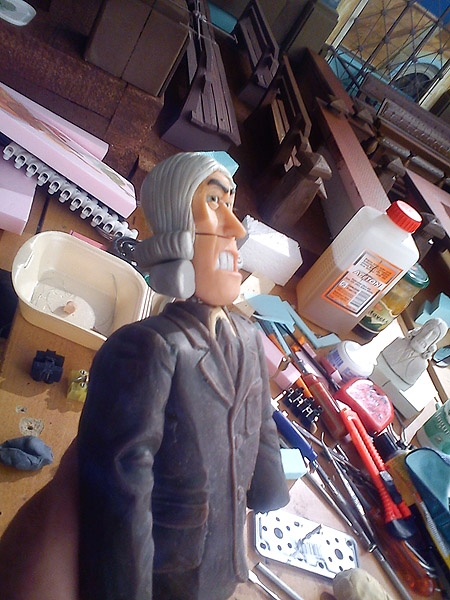

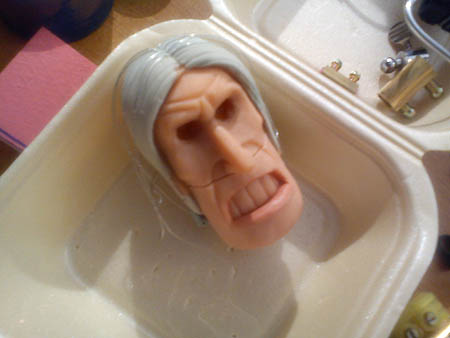

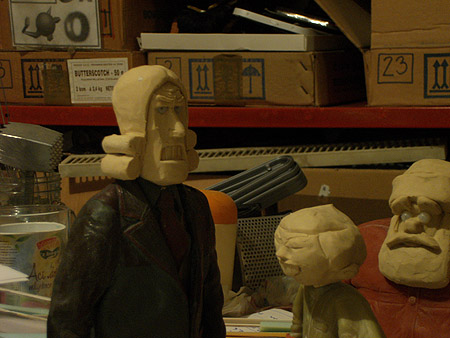

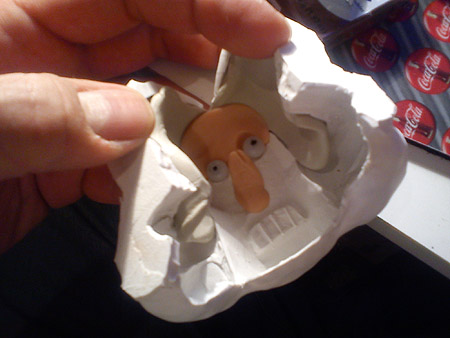

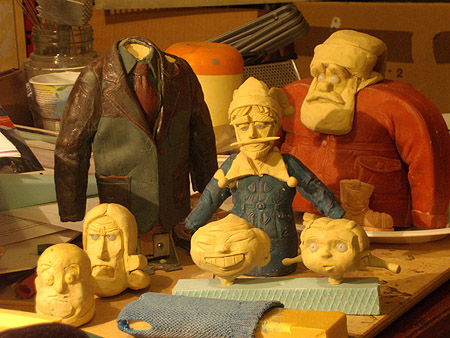

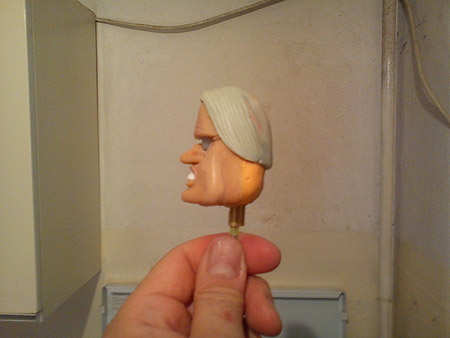

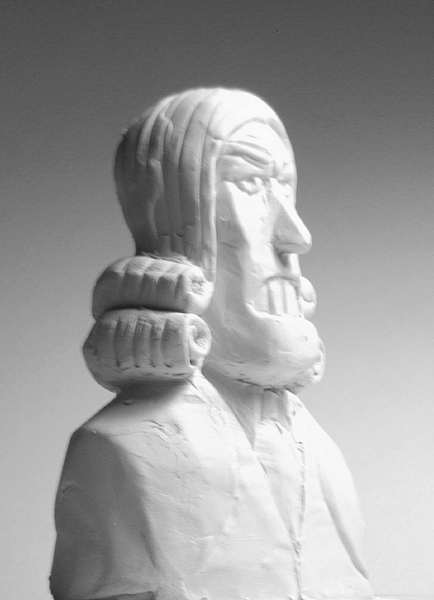

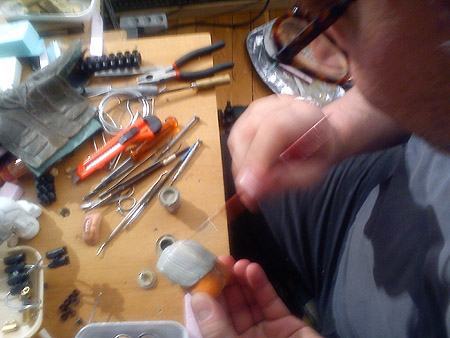

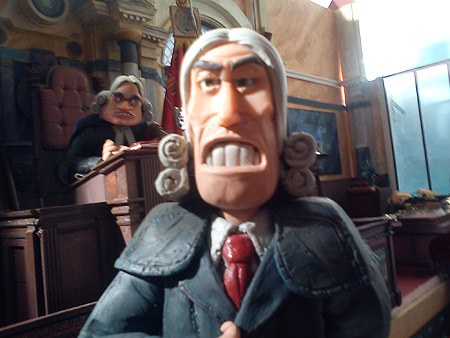

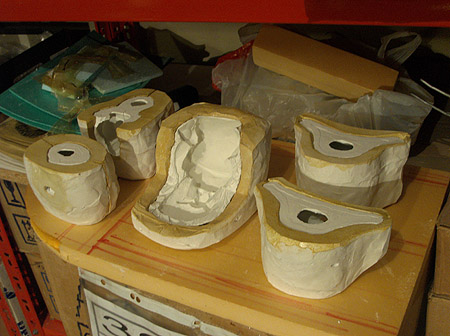

I
made the Prosecutor's head and some
other heads just as mock-ups, in soft

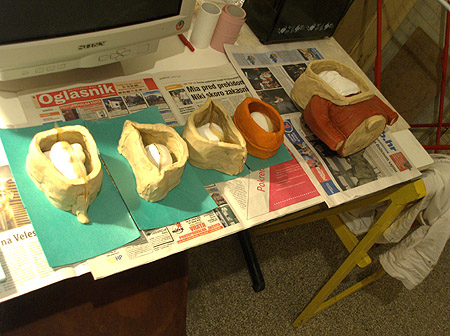

plasticine. I was pleased with the

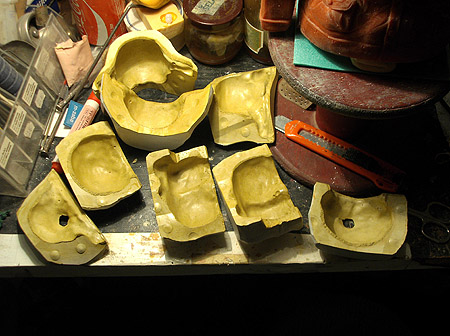

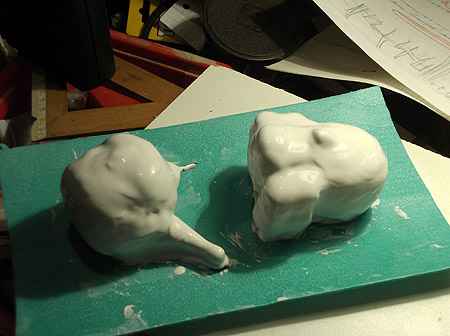

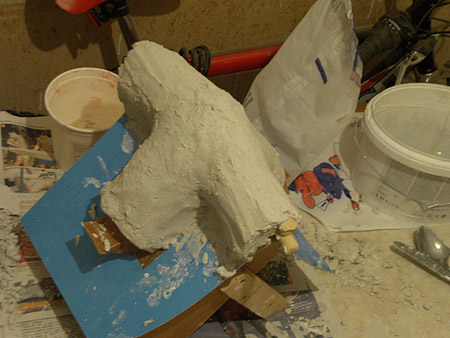

result, so in order to make exact

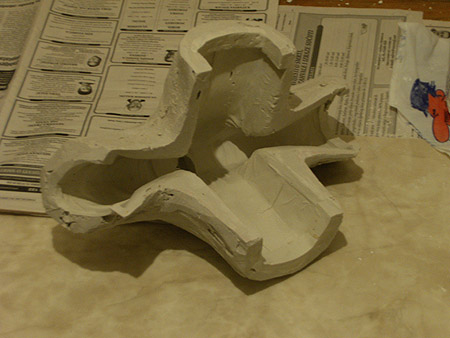

replicas, I made rubber and plaster

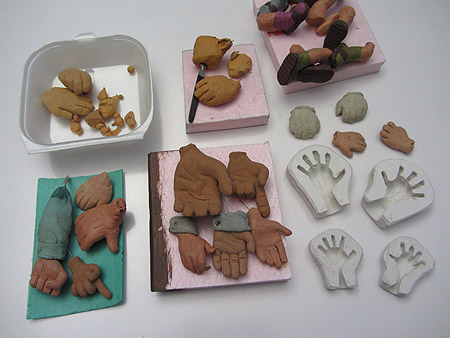

composite moulds. They can cast various
hardening materials, but I've needed
Fimo/Sculpy cast for the prosecutor's
head, with all the armature's and
magnet hidden inside.
|
 |
 |
 |
 |
 |
|
 |
|
|
|
|
|

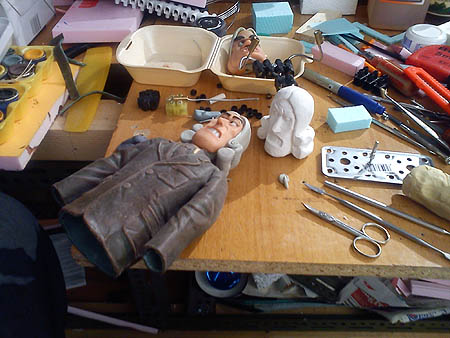

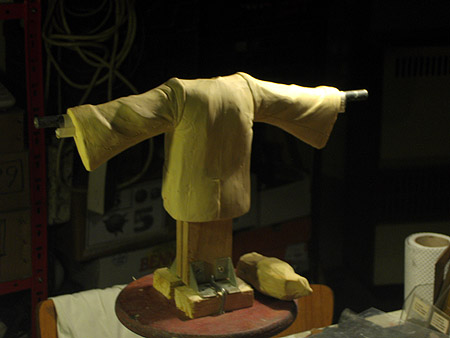

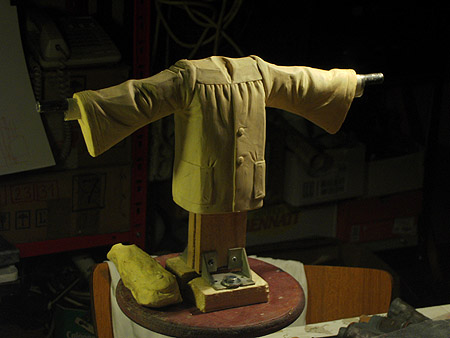

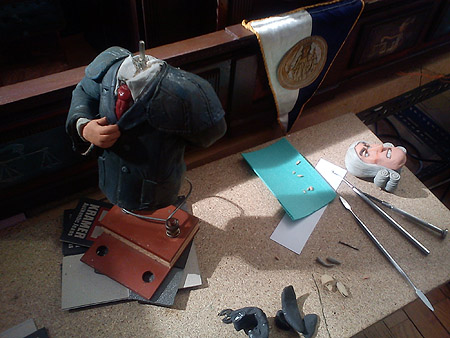

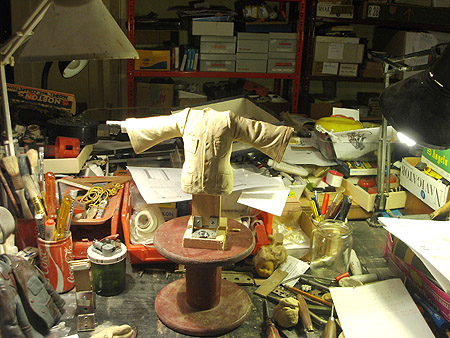

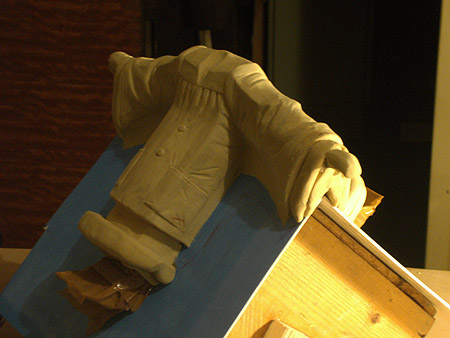

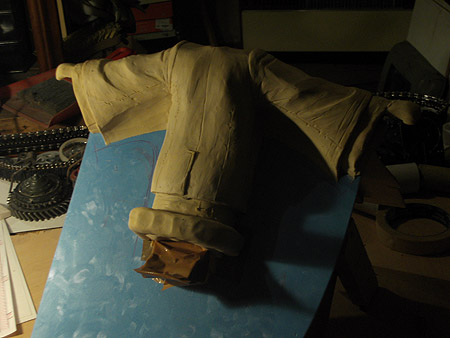

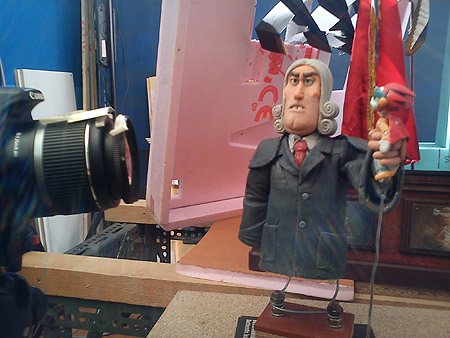

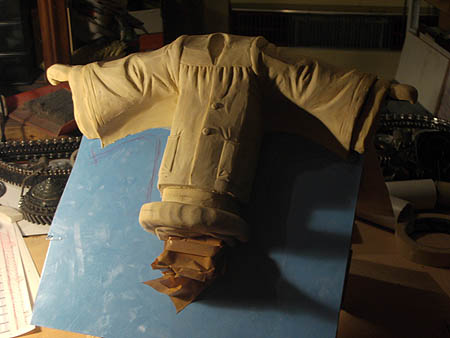

One
thing, though, gave me a headache:
the latex body was too big for the
already pretty big head. Making the
bigger head was out of the question
(it's not like I could 3-D print it!),
but creating new latex suit would
be an impossible feat (if nothing
else, it'd take too much time, weeks
maybe). I had to decide spot-on, so
I did what's hard - I've cut the latex
robe in pieces and put them together
in narrower form, with an add-on from
another latex suit - the collar with
a tie cut out.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
 |
|
 |
|
 |
|

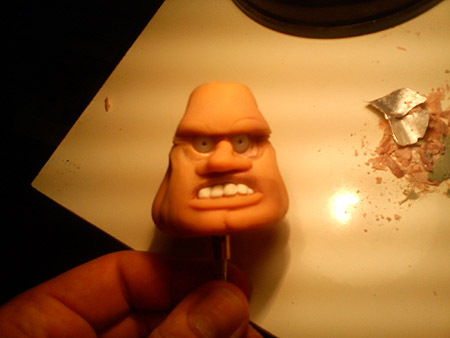

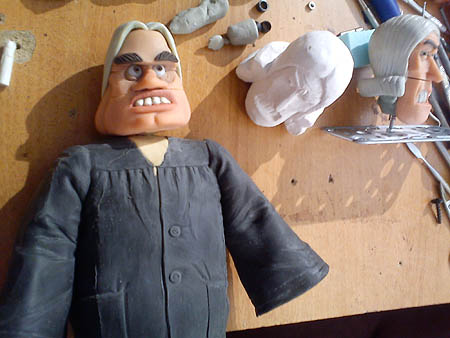

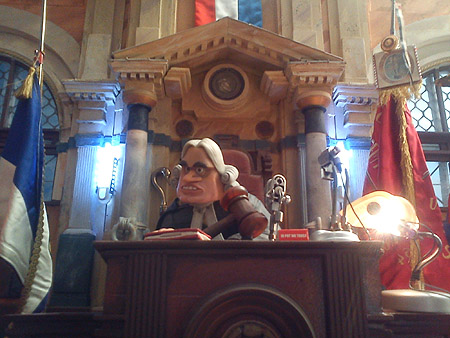

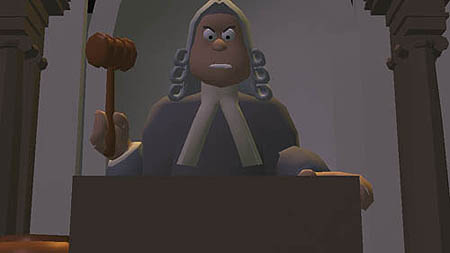

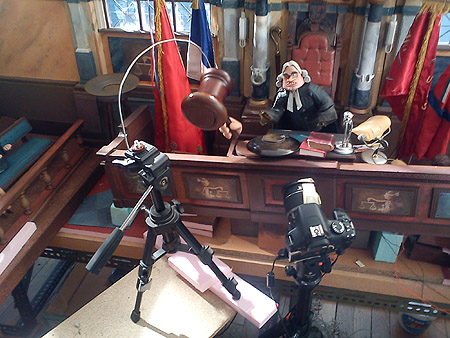

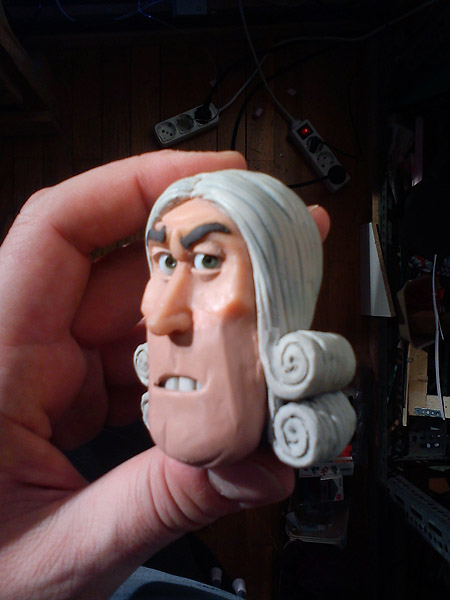

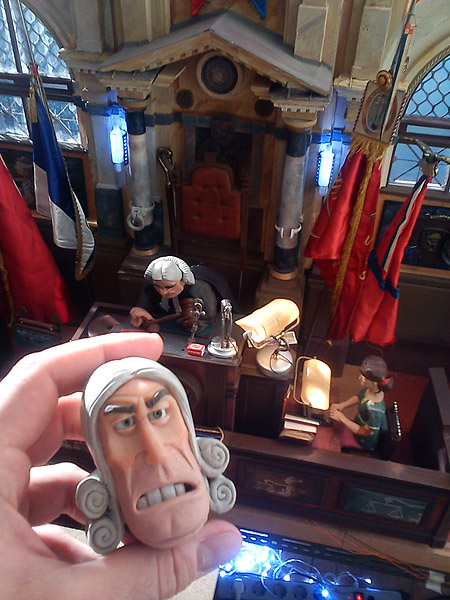

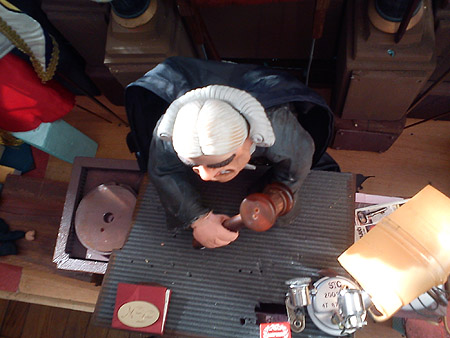

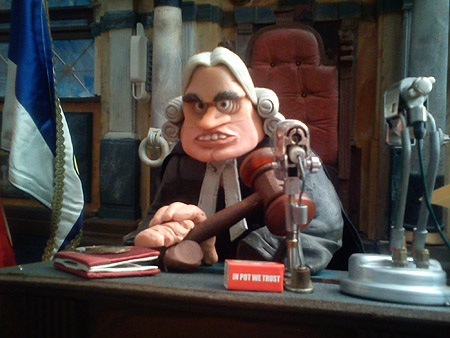

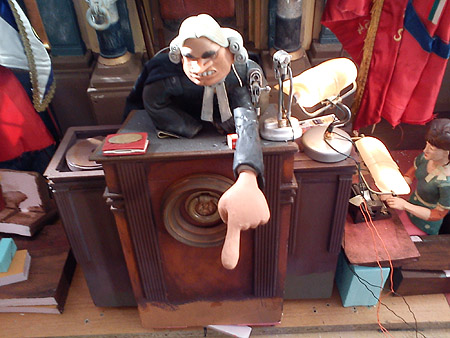

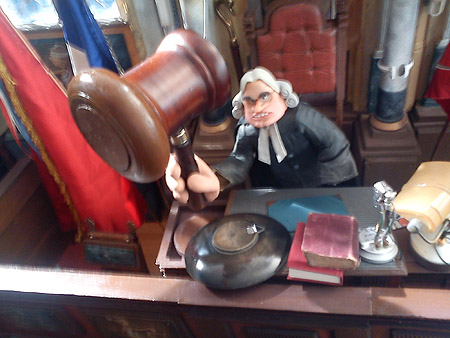

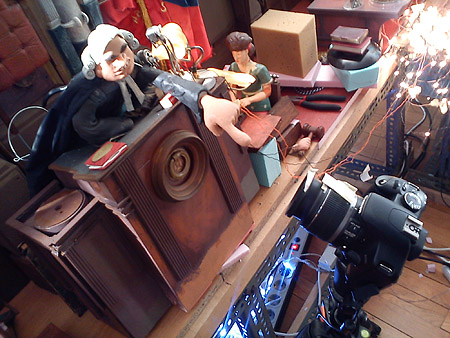

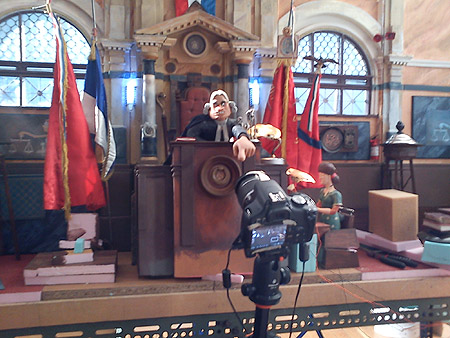

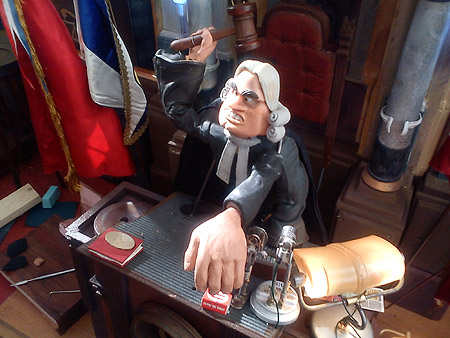

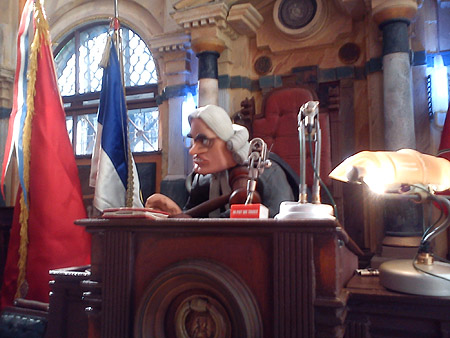

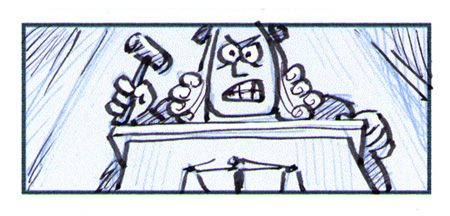

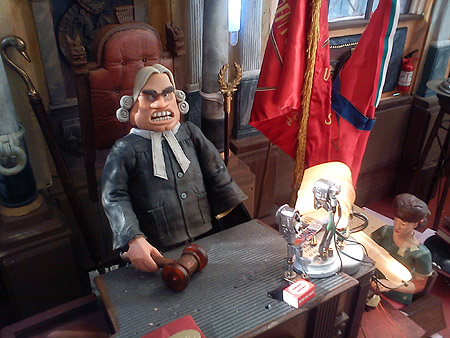

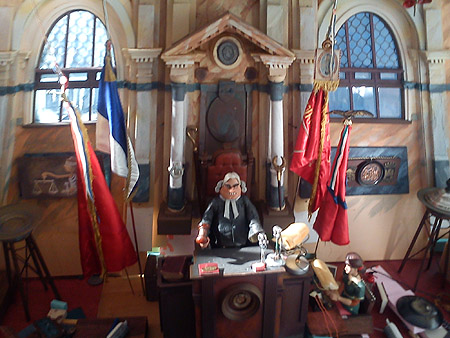

| The
JUDGE, unlike the Prosecutor, underwent
some, yet minor changes - he got to
end up somewhat more angular than in

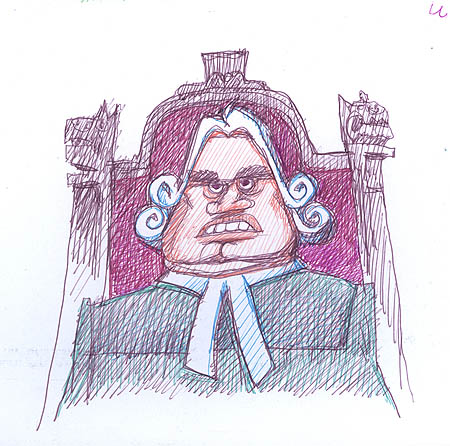

the begginings, but I got him just as

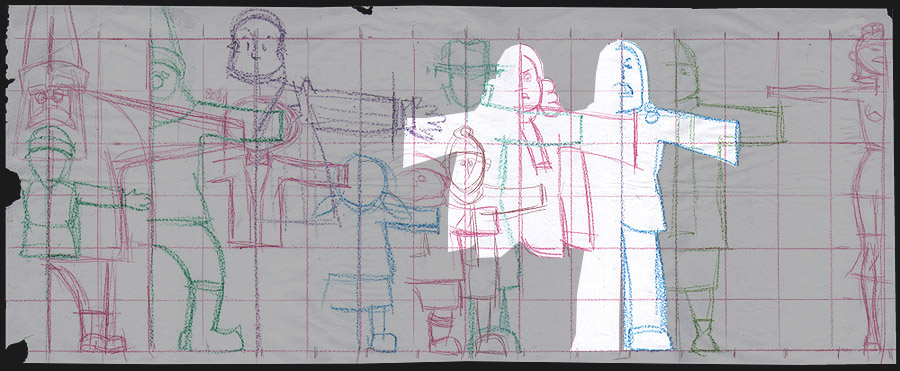

I wanted him, from this drawing on the
right, onwards. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|

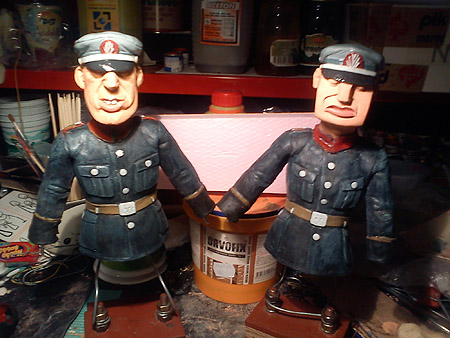

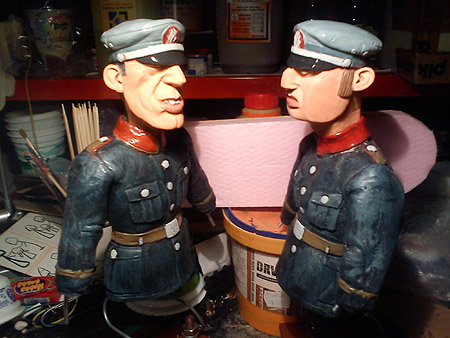

And
some more Officers of the Law

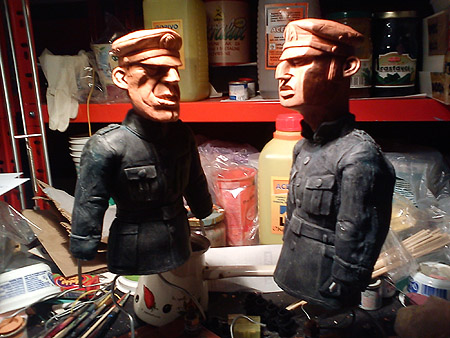

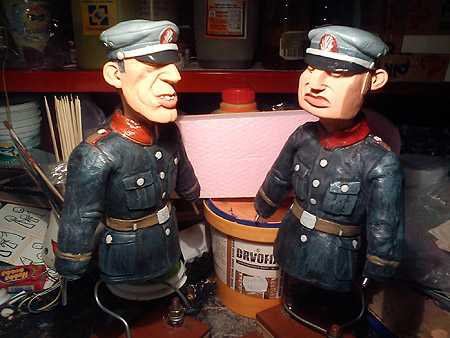

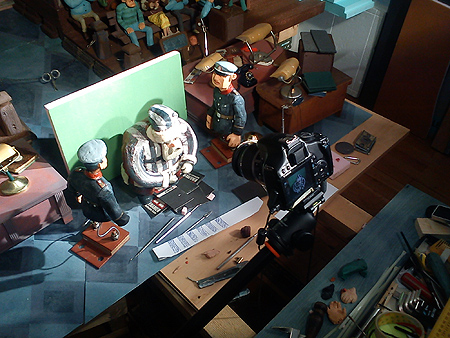

It
seemed neccessary to make new heads;
for I allready used all I had, recycling
the same bunch in every direction

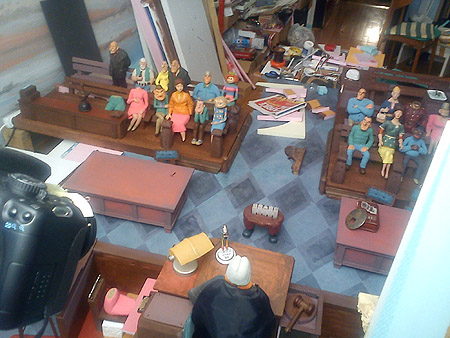

of the courtrom. Moreover, it's sort
of a wide shot, with most of the audience
in the background, so I thought I
had no spare heads. It turned out
I was wrong: when I composed the shot
eventually, the camera was pointing
low - too low for heads of the audience.
Nevertheless, I didn't have any decent
guard-like caps, leftovers from "Soldat",
so it was faster to produce new heads
with caps attached. Also, doing so
gave me a chance to at least blend
in uniforms made from Soldat's characters
moulds with that new angular design,
so one of the guards is distinctively
squared.
|
 |
|
 |
|
|

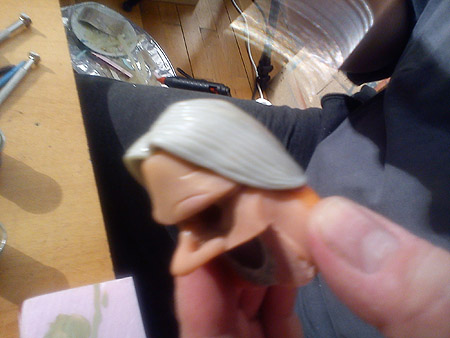

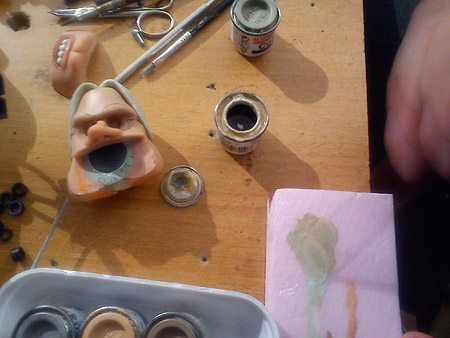

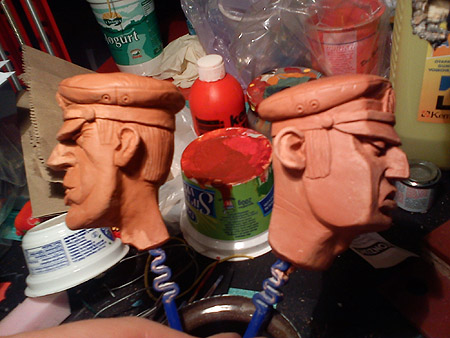

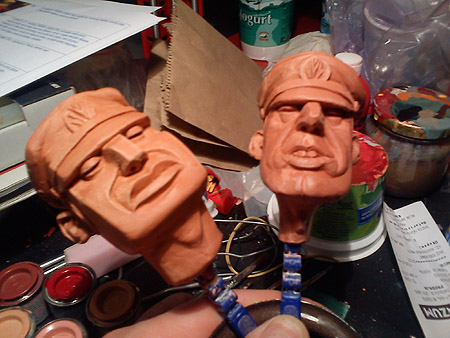

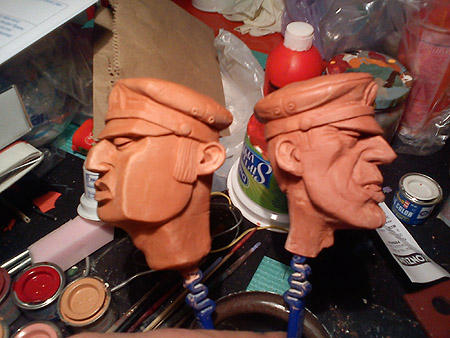

I
made these heads without even attempting
sketching them; I just made two different
heads in the right scale. They're
quite unballanced in style, but I
guess it won't be that noticeable
in the short time they appear on screen.
|
 |
|
 |
|
 |
|
 |
|
| |
